  • TDR/VNA Tester

Capable of measuring a large number of boards unattended,
24 hours a day. Auto loader model to save labor cost.

HTA3540AL

HTA3540AL

TDR Measurement System with Full Automation
HTA3540AL

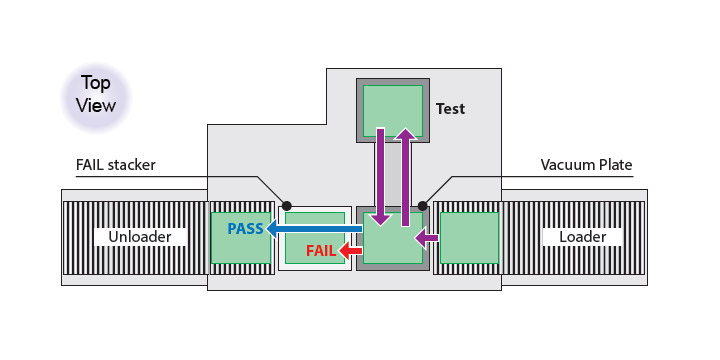

An auto loader model with tester section located in the center and autoloader/unloader on left and right sides. Capable of handling 520 pcs * with unattended operation. PCBs are transferred from loader on the right side to the tester section. After test, PASS board shall be transferred to unloader on the left side and FAIL board shall be stacked in FAIL stacker (up to 80 pcs *). As a standard feature static eliminator (ionizer) to remove static electricity is equipped. * When board thickness = 1mm

HTA3540AL

Operator needs only to place the boards onto the stacker, rest the machine shall automatically transfer the boards for testing. After testing, boards can be separated to PASS and FAIL boards.

Detailed Specification

HTA3540AL
Max. Test Area

13.7 x 15.7” (350 x 400 mm)
Max. Board Size

13.7 x 15.7” (350 x 400 mm)
Min. Board Size

3.1 x 2.3” (80 x 60 mm)
Max. Board Thickness

0.08” (2 mm)
Clamp System

Vacuum Plate
Stackable Boards

520pc (when thickness=1 mm)
Max. Transferable Panel

13.7 x 15.7” (350 x 400 mm)
Min. Transferable Panel

3.1 x 2.3” (80 x 60 mm)
Max. Transferable Weight

1.1 lbs. (0.5 kg) *1
Rotate Radius

Single end probe: 360°
Differential probe: ±180°
Repeatable Accuracy X–Y

±0.16 mil (±4 µm)
Repeatable Accuracy θ

1°
Impedance Accuracy *2

Single end: 50 Ω±1%
Differential: 100 Ω±1%
Air Supply: Pressure

0.5 MPa
Air Supply: Volumetric flow rate

0.12 ft³/min. (3.5 ℓ/min.)
Power Supply
Three Phase AC200–240 V 50/60 Hz

20 A
Weight

1984 lbs. (900 kg) *3
Dimensions [ unit: inch(mm) ]

Required System

Control PC & Monitor *4
Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Transfer can be done only when 6 or more suction pads (Φ10) are in contact with the board. *2 Fluctuation at room temperature after calibration is ±2°C *3 Weight of tester only. Loader: 441 lbs.(200 kg), Unloader: 441 lbs.(200 kg). *4 Please contact our sales for details.

Supported Meter *5

Tektronix

DSA8300
DSA8200
TDS8000
11801B
11801C
Keysight Technologies

E5063A+option TDR
E5071C+ENA option TDR
E5080B+option TDR
N5224B+option TDR
86100A
86100B
86100C
54750
N1000A
Rohde & Schwarz

ZNA26
ZNB26
ZNA43
ZNB43
Teledyne LeCroy

WaveExpert100H＋ST-20
MicroCraft

MZ30
MZ50

*5 Please contact our sales for details. Meters to be purchased separately.
