TDR's impedance measurement system for high-end users.
Incorporates a high-precision mechanical stage,
ideal for measurement of fine pitch boards.

E1T6151 / E2T6151

E1T/E2T6151

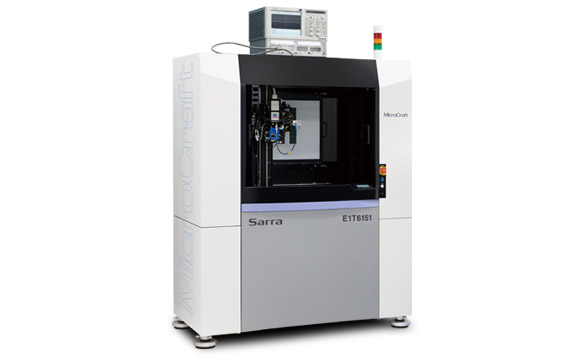

Moving Probe TDR Measurement System
E1T6151 (1 probe)
E2T6151 (2 probe)
E1T6151 has one arm, and E2T6151 with two arms. Compared to manual impedance measurement, E1T6151 has unparalleled speed and repeatability. Mounted with high-frequency probes such as Form Factor's ACP40 series, it is ideal for impedance measurement for C4Bump's high-frequency range. An ionizer to remove static electricity comes as a standard.

Probe housing can mount up to two probes allowing highly flexible measurement

Probe housing to mount maximum of 2 probes.

Probe housing allows the angle and position of SIG and GND to be adjusted, and the combination of two probes can contact various SG arrangements.

Detailed Specification

E1T6151 (1 Probe) E2T6151 (2 Probe)
Max. Test Area (vacuuming area)

17.7 x 16.1” (450 x 410 mm)

14.1 x 16.1” (360 x 410 mm)
Clamp System

Vacuum plate / TDR multi clamp

Vacuum plate / TDR multi clamp
Rotate Radius

325° (In case of single end probe)
235° (In case of differential probe set at 90°)
145° (In case of differential probe set at 180°)

325° (In case of single end probe)
235° (In case of differential probe set at 90°)
145° (In case of differential probe set at 180°)
Repeatable Accuracy X–Y

±0.16 mil (±4 µm)

±0.16 mil (±4 µm)
Repeatable Accuracy θ

1°

1°
Impedance Accuracy *1

50 Ω±1%

50 Ω±1%
Air Supply: Pressure

0.5 MPa

0.5 MPa
Air Supply: Volumetric flow rate

0.12 ft³/min. (3.5 ℓ/min.)

0.12 ft³/min. (3.5 ℓ/min.)
Power Supply
Single Phase AC200–240 V 50/60 Hz

6 A

8 A
Weight

2425 lbs. (1100 kg)

2535 lbs. (1150 kg)
Dimensions [ unit: inch(mm) ]

Required System

Control PC & Monitor *2
Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Fluctuation at room temperature after calibration is ±2°C *2 Please contact our sales for details.

Supported Meter *3

Tektronix

DSA8300
DSA8200
TDS8000
11801B
11801C
Keysight Technologies

E5063A+option TDR
E5071C+ENA option TDR
E5080B+option TDR
N5224B+option TDR
86100A
86100B
86100C
54750
N1000A
Rohde & Schwarz

ZNA26
ZNB26
ZNA43
ZNB43
Teledyne LeCroy

WaveExpert100H＋ST-20
MicroCraft

MZ30
MZ50

*3 Please contact our sales for details. Meters to be purchased separately.
