  • On-demand InkJet Printing System

Equipped with two high-definition print heads

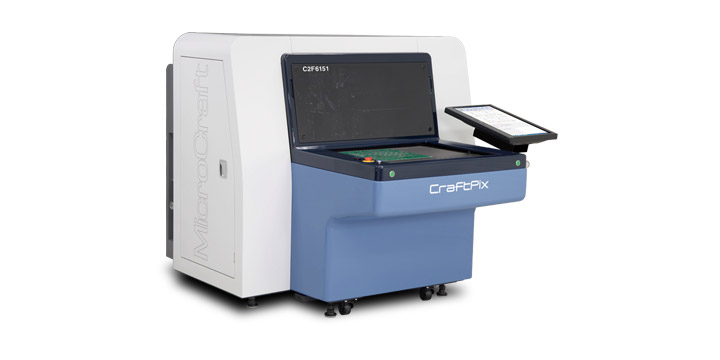

C2F model

C2F

High-Definition Printing Model
C2F6151 / C2F7861
Equipped with two high-definition print heads. This model combines a full range of basic performance with one notch above printing quality.

Detailed Specification

C2F6151 C2F7861
Max. Panel Size

24.6 x 21” (625 x 535 mm)

31.3 x 25.6” (795 x 651 mm)
Max. Discharge Frequency

80 kHz

80 kHz
X-axis Resolution (dpi)

600 / 900 / 1200 / 1500 / 2400

600 / 900 / 1200 / 1500 / 2400
Y-axis Resolution (dpi)

1200 / 2400

1200 / 2400
Min. Droplet Size

3.5 pl

3.5 pl
Number of Nozzles

2 x 1776 (3552)

2 x 1776 (3552)
Standard Resolution

1200 dpi

1200 dpi
Min. Line Width *1

40 µm–70 µm

40 µm–70 µm
Speed *2

22.8x17” (580 x 430 mm): 17 seconds

24 x 20” (610 x 510 mm): 27 seconds

22.8x17” (580 x 430 mm): 17 seconds

24 x 20” (610 x 510 mm): 27 seconds

30.7 x 24” (780 x 610 mm): 31 seconds
Number of Ink Tank

1

1
Ink Tank Volume (Max.)

1000 ml

1000 ml
On-Head UV Lamp *3

LED-UV lamp

LED-UV lamp
Number of Alignment Cameras

1

1
Camera Resolution

0.33 x 0.24” (8.4 x 6.3 mm)

0.33 x 0.24” (8.4 x 6.3 mm)
Air Supply: Pressure

0.5 MPa

0.5 MPa
Air Supply: Volumetric flow rate

2.7 ft³/min. (75 ℓ/min.)

2.7 ft³/min. (75 ℓ/min.)
Power Supply *4
Single Phase AC200–240 V 50/60 Hz

15 A

15 A
Weight

1543 lbs. (700 kg)

2205 lbs. (1000 kg)
Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 LED UV lamp to be mounted depends on the ink to be used. *4 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *5
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional
Monitor

Touch Screen LCD Monitor
Software

Windows 10 / Windows 11
Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *6, TIFF *6

*5 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *6 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz
Capacity

50 Hz: 20.7 ft³/min. (575 ℓ/min.)
60 Hz: 24.7 ft³/min. (685 ℓ/min.)
Air Coupler Size

RC 3/4
Weight

187.4lbs. (85 kg)

* Depends on clamping method
