S Series / EMMA

Moving Probe Tester

Offers Extreme High Accuracy Testing through Type 9 Probe

S Series (4 Probe System)

Super High Accuracy Model

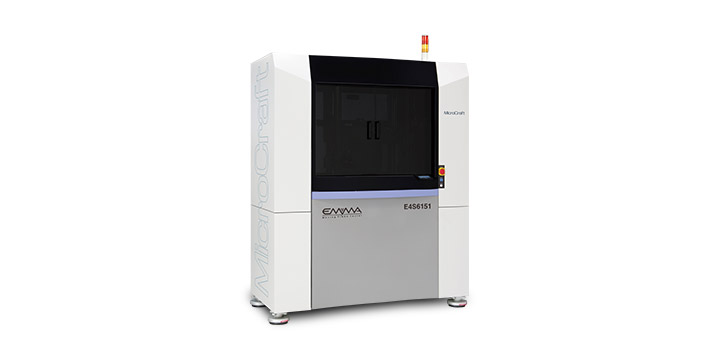

E4S6151G / E4S3325G NEW
Extreme high accuracy testing was achieved by Type 9 usage. E4S6151G corresponds to testing standard sized board with up to min. pad size of 15µm and min. pad pitch of 45µm. Whereas E4S3325G is specifically designed for testing package boards like general CSP and Flip-Chip with up to min. pad size of 10µm and min. pad pitch of 40µm.

Detailed Specification

	E4S6151G	E4S3325G
Max. Test Area	24 x 20” (610 x 510 mm)	13 x 9.8” (330 x 250 mm)
Number of Probes	2 Front, 2 Rear	2 Front, 2 Rear
Min. Board Size	2.4 x 2.6” (60 x 65 mm)	1.6 x 1.4” (40 x 35 mm)
Max. Board Thickness	0.354” (9 mm)	0.354” (9 mm)
Untestable Area	1 mm from edge of clamp area *1	1 mm from edge of clamp area *1
Repeatable Accuracy *2	±0.08 mil (±2 µm)	±0.04 mil (±1 µm)
Resolution	0.04 mil (1 µm)	0.04 mil (1 µm)
Min. Pad Pitch	1.8 mil (45 µm) *3	1.6 mil (40 µm) *3
Min. Pad Size	0.6 mil (15 µm) *4	0.4 mil (10 µm) *4
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *5	Continuity Test: 0–10 V Isolation Test: 250 V *5
Test Current	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA
Clamp System	Pneumatic Clamp	Pneumatic Clamp
Alignment Camera	2 Front, 2 Rear	2 Front, 2 Rear
Printer	External	External
Air Supply: Pressure	0.5 MPa	0.5 MPa
Air Supply: Volumetric flow rate	0.12 ft³/min. (3.5 ℓ/min.)	0.12 ft³/min. (3.5 ℓ/min.)
Power Supply *6 Single Phase AC200–240 V 50/60 Hz	10 A	10 A
Weight	2535 lbs. (1150 kg)	2646 lbs. (1200 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 With needle probe. Figure will be differ with other probes. *2 This is based on laser measurement. *3 With T98MC-PB-0R80 probe *4 With T98MC-PB-0B00 probe *5 500 V / 1000 V Option *6 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.

S Series (8 Probe System)

Super High Accuracy Model
E8S6151G NEW
Equipped with Type 9 probes, this model achieves high-speed, low-witnessmark, and maintains a high level of accuracy with positioning resolution of 2µm and repeatability of ±4µm.

Detailed Specification

	E8S6151G
Max. Test Area	24 x 20” (610 x 510 mm)
Number of Probes	4 Front, 4 Rear
Min. Board Size	2.4 x 3” (60 x 75 mm)
Max. Board Thickness	0.354” (9 mm)
Untestable Area	3 mm from edge of clamp area *1
Repeatable Accuracy *2	±0.16 mil (±4 µm)
Resolution	0.08 mil (2 µm)
Min. Pad Pitch	4.0 mil (100 µm) *3
Min. Pad Size	2.0 mil (50 µm) *4
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *5
Test Current	Continuity Test: 2.5 µA–150 mA
Clamp System	Pneumatic Clamp
Alignment Camera	4 Front, 4 Rear
Printer	External
Air Supply: Pressure	0.5 MPa
Air Supply: Volumetric flow rate	0.12 ft³/min. (3.5 ℓ/min.)
Power Supply *6 Single Phase AC200–240 V 50/60 Hz	20 A
Weight	4409 lbs. (2000 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 With needle probe. Figure will be differ with other probes. *2 This is based on laser measurement. *3 With TIPRB-PB-N110, TIPRB-PB-N111 probe *4 With TIPRB-PB-B210, TIPRB-PB-B211 probe *5 500 V / 1000 V Option *6 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.

S Series (2 Probe System)

Super High Accuracy Model
F2S6151G / F2S3325G NEW
Extreme High Accuracy Testing is made possible through the use of Type 9 Probe. F2S6151G corresponds to testing standard sized board with up to min. pad size of 15µm and min. pad pitch of 45µm. Whereas F2S3325G is specifically designed for testing general package boards such as CSP and Flip Chip up to min. pad size of 10µm and min. pad pitch of 40µm.
* Door design may defer depending on the specification.

Detailed Specification

	F2S6151G	F2S3325G
Max. Test Area	24 x 20” (610 x 510 mm)	13 x 9.8” (330 x 250 mm)
Number of Probes	2 Upper	2 Upper
Min. Board Size	2 x 2” (50 x 50 mm)	2 x 2” (50 x 50 mm)
Max. Board Thickness	0.16” (4 mm)	0.16” (4 mm)
Untestable Area	—	—
Repeatable Accuracy *1	±0.08 mil (±2 µm)	±0.04 mil (±1 µm)
Resolution	0.04 mil (1 µm)	0.04 mil (1 µm)
Min. Pad Pitch	1.8 mil (45 µm) *2	1.6 mil (40 µm) *2
Min. Pad Size	0.6 mil (15 µm) *3	0.4 mil (10 µm) *3
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *4	Continuity Test: 0–10 V Isolation Test: 250 V *4
Test Current	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA
Clamp System	Vacuum Plate	Vacuum Plate
Alignment Camera	2 Upper	2 Upper
Printer	External	External
Air Supply: Pressure	0.5 MPa	N/A
Air Supply: Volumetric flow rate	0.02 ft³/min. (0.6 ℓ/min.)	N/A
Power Supply *5 Single Phase AC200–240 V 50/60 Hz	8 A	8 A
Weight	1587 lbs. (720 kg)	1543 lbs. (700 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 This is based on laser measurement. *2 With T98MC-PB-0R80 probe *3 With T98MC-PB-0B00 probe *4 500 V / 1000 V Option *5 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.
