  • On-demand InkJet Printing System

Utilizes an ink cartridge system to supply ink to the print head.
Most suitable for customers using multiple types of inks in small quantities.

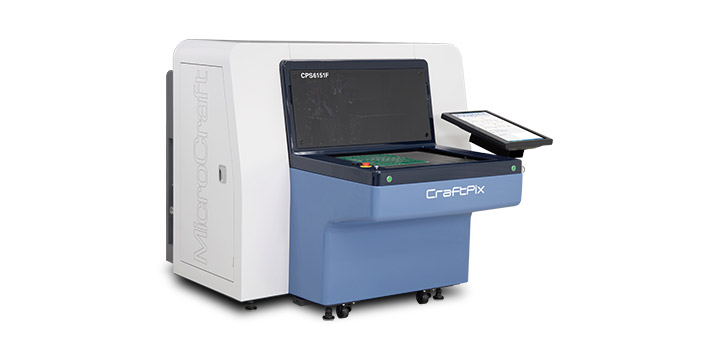

CPS model

CPS

Small Ink Quantity Model

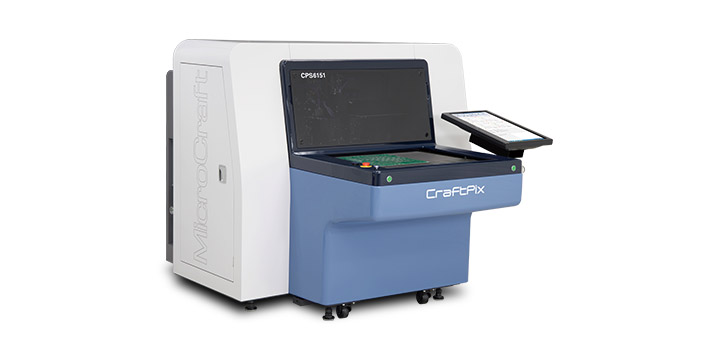

CPS6151 / CPS7861
CPS uses a special ink cartridge for supplying ink to the print head unlike the regular supply tanks used in other CraftPix models. This model is most suitable for customer using multiple types of inks in small quantity for making experiment lot or using highly expensive inks such as silver nano ink.

Detailed Specification

CPS6151 CPS7861
Max. Panel Size

24.6 x 21” (625 x 535 mm)

31.3 x 25.6” (795 x 651 mm)

Max. Discharge Frequency

45 kHz

45 kHz

X-axis Resolution (dpi)

360 / 720 / 1080 / 1440

360 / 720 / 1080 / 1440

Y-axis Resolution (dpi)

360 / 720 / 1080 / 1440 / 1800 / 2160

360 / 720 / 1080 / 1440 / 1800 / 2160

Min. Droplet Size

6 pl / 13 pl

6 pl / 13 pl

Number of Nozzles

1 x 1024

1 x 1024

Standard Resolution

720 dpi

720 dpi

Min. Line Width *1

70 µm–90 µm

70 µm–90 µm

Speed *2

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

30.7 x 24” (780 x 610 mm): 59 seconds

Number of Ink Tank

1

1

Ink Tank Volume (Max.)

100 ml

100 ml

On-Head UV Lamp

Metal halide lamp or LED-UV lamp

Metal halide lamp or LED-UV lamp

Camera Resolution

8.4 x 6.3 mm

8.4 x 6.3 mm

Air Supply: Pressure

0.5 MPa

0.5 MPa

Air Supply: Volumetric flow rate

2.7 ft³/min. (75 ℓ/min.)

2.7 ft³/min. (75 ℓ/min.)

Power Supply *3
Single Phase AC200–240 V 50/60 Hz

15 A

15 A

Weight

1543 lbs. (700 kg)

2205 lbs. (1000 kg)

Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *4
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional

Alignment

CCD Camera

Monitor

Touch Screen LCD Monitor

Software

Windows 7 / Windows 8 / Windows 10

Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *5, TIFF *5

*4 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *5 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz

Capacity

50 Hz: 20.7ft³/min. (575ℓ/min.)
60 Hz: 24.7ft³/min. (685ℓ/min.)

Air Coupler Size

RC 3/4

Weight

187.4lbs. (85 kg)

* Depends on clamping method
