  • On-demand InkJet Printing System

Equipped with 4 print heads.
The Second highest speed model following the CPE model.

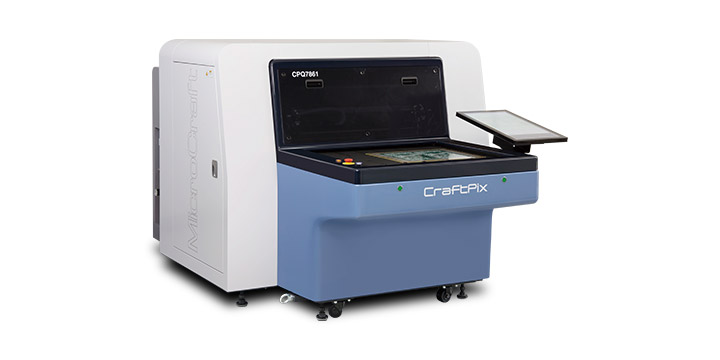

CPQ model

CPQ

High Speed Printing Model
CPQ7861
CPQ model equipped with four print heads on its dedicated body, enables high-speed printing next to the CPE model. The alignment time is dramatically reduced by implementation of three CCD cameras. The vast print area covered by the four print heads enables printing on a 22.8 x 17” (580 x 430 mm) substrate in as fast as 11 seconds surpassing CPi. Being equipped with two ink tanks, it is possible to use as a two-color printing model with a 2 head + 2 head configuration.

Detailed Specification

CPQ7861
Max. Panel Size

31.3 x 25.6” (795 x 651 mm)

Max. Discharge Frequency

45 kHz

X-axis Resolution (dpi)

360 / 720 / 1080 / 1440

Y-axis Resolution (dpi)

360 / 720 / 1080 / 1440 / 1800 / 2160

Min. Droplet Size

6 pl / 13 pl

Number of Nozzles

4 x 1024 (4096)

Standard Resolution

720 dpi

Min. Line Width *1

70 µm–90 µm

Speed *2

22.8x17” (580 x 430 mm): 11 seconds
24 x 20” (610 x 510 mm): 11 seconds
30.7 x 24” (780 x 610 mm): 20 seconds

Number of Ink Tank

2

Ink Tank Volume (Max.)

1000 ml x 2

On-Head UV Lamp

LED-UV Lamp

Camera Resolution

11.8 x 9.0 mm

Air Supply: Pressure

0.5 MPa

Air Supply: Volumetric flow rate

5.4 ft³/min. (150 ℓ/min.)

Power Supply *3
Single Phase AC200–240 V 50/60 Hz

20 A

Weight

2932 lbs. (1330 kg)

Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *4
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional

Alignment

CCD Camera

Monitor

Touch Screen LCD Monitor

Software

Windows 7 / Windows 8 / Windows 10

Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *5, TIFF *5

*4 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *5 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz

Capacity

50 Hz: 20.7ft³/min. (575ℓ/min.)
60 Hz: 24.7ft³/min. (685ℓ/min.)

Air Coupler Size

RC 3/4

Weight

187.4lbs. (85 kg)

* Depends on clamping method
