  • On-demand InkJet Printing System

Budget model equipped with 1 print head
which is also used in the CPi model.

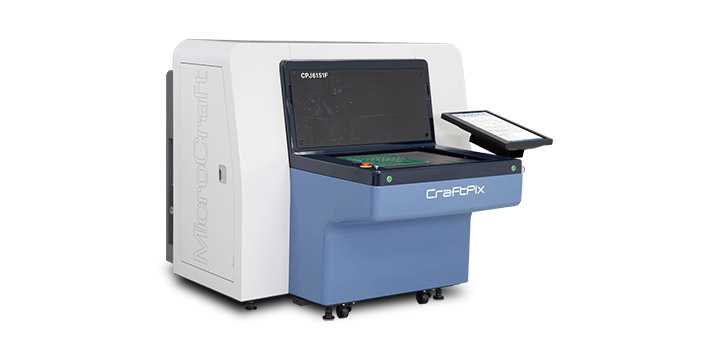

CPJ model

CPJ

Budget Model
CPJ6151 / CPJ7861
Budget Model is equipped with the same array installed in the CPi model. With its capability of changing print resolution in x-direction by 30dpi step, it allows operators to make precise adjustment to their print quality.

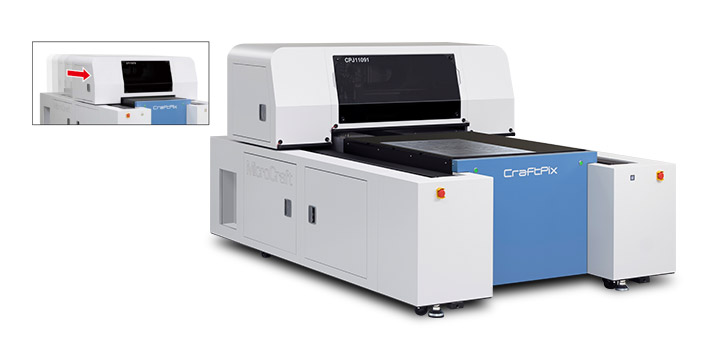

Super Large Size Model

Budget Model (Super Large Size Model)
CPJ11078 / CPJ11091 / CPJ120110 NEW
CraftPix also comes in Super Large Size Model capable of printing extreamly large work size, and this custom model is offered for each of CPi, CPJ, and CPT models. Print speed and quality is equivalent of these models in standard 6151 / 7861 size. This model is also installed with single direction printing with moving print head unit, where it moves front / rear direction.

Detailed Specification (6151 / 7861)

CPJ6151 CPJ7861
Max. Panel Size

24.6 x 21” (625 x 535 mm)

31.3 x 25.6” (795 x 651 mm)

Max. Discharge Frequency

45 kHz

45 kHz

X-axis Resolution (dpi)

360 / 720 / 1080 / 1440

360 / 720 / 1080 / 1440

Y-axis Resolution (dpi)

360 / 720 / 1080 / 1440 / 1800 / 2160

360 / 720 / 1080 / 1440 / 1800 / 2160

Min. Droplet Size

6 pl / 13 pl

6 pl / 13 pl

Number of Nozzles

1 x 1024 (1024)

1 x 1024 (1024)

Standard Resolution

720 dpi

720 dpi

Min. Line Width *1

70 µm–90 µm

70 µm–90 µm

Speed *2

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

30.7 x 24” (780 x 610 mm): 59 seconds

Number of Ink Tank

1

1

Ink Tank Volume (Max.)

1000 ml

1000 ml

On-Head UV Lamp

Metal halide lamp or LED-UV lamp

Metal halide lamp or LED-UV lamp

Camera Resolution

8.4 x 6.3 mm

8.4 x 6.3 mm

Air Supply: Pressure

0.5 MPa

0.5 MPa

Air Supply: Volumetric flow rate

2.7 ft³/min. (75 ℓ/min.)

2.7 ft³/min. (75 ℓ/min.)

Power Supply*3
Single Phase AC200–240 V 50/60 Hz

15 A

15 A

Weight

1543 lbs. (700 kg)

2205 lbs. (1000 kg)

Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Detailed Specification (11078 / 11091 / 120110)

CPJ11078 CPJ11091 CPJ120110
Max. Panel Size

45 x 31.1” (1142 x 790 mm)

45 x 35.8” (1142 x 910 mm)

48 x 44” (1220 x 1120 mm)

Max. Discharge Frequency

45 kHz

45 kHz

45 kHz

X-axis Resolution (dpi)

360 / 720 / 1080 / 1440

360 / 720 / 1080 / 1440

360 / 720 / 1080 / 1440

Y-axis Resolution (dpi)

360 / 720 / 1080 / 1440 / 1800 / 2160

360 / 720 / 1080 / 1440 / 1800 / 2160

360 / 720 / 1080 / 1440 / 1800 / 2160

Min. Droplet Size

6 pl / 13 pl

6 pl / 13 pl

6 pl / 13 pl

Number of Nozzles

1 x 1024 (1024)

1 x 1024 (1024)

1 x 1024 (1024)

Standard Resolution

720 dpi

720 dpi

720 dpi

Min. Line Width *1

70 µm–90 µm

70 µm–90 µm

70 µm–90 µm

Speed *2

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

30.7 x 24” (780 x 610 mm): 59 seconds

43.3 x 30.7” (1100 x 780 mm): 113 seconds

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

30.7 x 24” (780 x 610 mm): 59 seconds

43.3 x 30.7” (1100 x 780 mm): 113 seconds

22.8x17” (580 x 430 mm): 32 seconds

24 x 20” (610 x 510 mm): 44 seconds

30.7 x 24” (780 x 610 mm): 59 seconds

43.3 x 30.7” (1100 x 780 mm): 113 seconds

Number of Ink Tank

1

1

1

Ink Tank Volume (Max.)

1000 ml

1000 ml

1000 ml

On-Head UV Lamp

Metal halide lamp or LED-UV lamp

Metal halide lamp or LED-UV lamp

Metal halide lamp or LED-UV lamp

Camera Resolution

8.4 x 6.3 mm

8.4 x 6.3 mm

8.4 x 6.3 mm

Air Supply: Pressure

0.5 MPa

0.5 MPa

0.5 MPa

Air Supply: Volumetric flow rate

2.7 ft³/min. (75 ℓ/min.)

2.7 ft³/min. (75 ℓ/min.)

2.7 ft³/min. (75 ℓ/min.)

Power Supply *3
Single Phase AC200–230 V 50/60 Hz

20 A

20 A

20 A

Weight

3748 lbs. (1700 kg)

4850 lbs. (2200 kg)

5952 lbs. (2700 kg)

Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *4
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional

Alignment

CCD Camera

Monitor

Touch Screen LCD Monitor

Software

Windows 7 / Windows 8 / Windows 10

Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *5, TIFF *5

*4 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *5 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz

Capacity

50 Hz: 20.7ft³/min. (575ℓ/min.)
60 Hz: 24.7ft³/min. (685ℓ/min.)

Air Coupler Size

RC 3/4

Weight

187.4lbs. (85 kg)

* Depends on clamping method
