  • On-demand InkJet Printing System

Flagship model with the highest printing speed in the CraftPix series.

CPE model

CPE

Super High Speed Printing Model

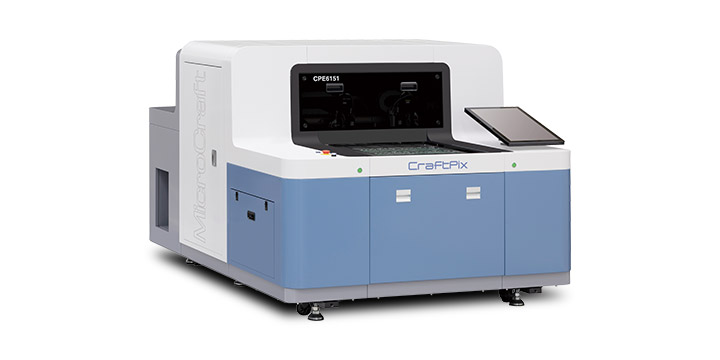

CPE6151
CPE model equipped with eight print heads is a flagship model that achieves printing speed exceeding the CPQ model. The shuttle table driven by a linear motor combines accuracy and high speed, and achieves the fastest printing in the CraftPix history. It is also possible to use it for legend printing in mass production lines, as well as for solder resists that require ink thickness. Overwhelming print speed will dramatically increase the productivity and brings innovation to your production site.

Detailed Specification

CPE6151
Max. Panel Size

24.6 x 21” (625 x 535 mm)

Max. Discharge Frequency

45 kHz

X-axis Resolution (dpi)

360 / 720 / 1080 / 1440 / 1800 / 2160

Y-axis Resolution (dpi)

360 / 720 / 1080 / 1440

Min. Droplet Size

6 pl / 13 pl

Number of Nozzles

8 x 1024 (8192)

Standard Resolution

720 dpi

Min. Line Width *1

70 µm–90 µm

Speed *2

22.8x17” (580 x 430 mm): 6 seconds
24 x 20” (610 x 510 mm): 6 seconds

Number of Ink Tank

1

Ink Tank Volume (Max.)

1000 ml

On-Head UV Lamp

LED-UV Lamp

Camera Resolution

11.8 x 9.0 mm

Air Supply: Pressure

0.5 MPa

Air Supply: Volumetric flow rate

8 ft³/min. (225 ℓ/min.)

Power Supply *3
Single Phase AC200–240 V 50/60 Hz

30 A

Weight

3968 lbs. (1800 kg)

Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Depends on ink *2 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *3 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *4
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional

Alignment

CCD Camera

Monitor

Touch Screen LCD Monitor

Software

Windows 7 / Windows 8 / Windows 10

Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *5, TIFF *5

*4 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *5 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz

Capacity

50 Hz: 20.7ft³/min. (575ℓ/min.)
60 Hz: 24.7ft³/min. (685ℓ/min.)

Air Coupler Size

RC 3/4

Weight

187.4lbs. (85 kg)

* Depends on clamping method
